Ready to Honed Tube

JW is a professional manufacturer specializing in the production of ready to honed tube (cold-drawn tubes). With advanced technology and extensive experience, JW is dedicated to providing high-precision ready to honed tubes. Our ready to honed tube are widely used in the material of producing hydraulic cylinder tubes and some mechanical steel tubes. We pride ourselves on delivering superior quality, excellent performance, and customized solutions to meet the unique needs of our global clients.

Facebook
Twitter
LinkedIn
Telegram
Pinterest
Email

Specifications:

  • Grade:ST 52
  • Inside diameter from 38 to 250mm
  • Max length 14m.
  • Straightness: 0.5 /1000
  • Tubes are provided according to the norm EN10305-1
  • Type:cold drawing

CHEMICAL COMPOSITION (%)

Si(Max)

Mn(Max)

C(Max)

P (Max.)

S(Max)

0.50

1.6

0.22

0.025

0.025

MECHANICAL PROPERTIES

Tensile strength Min

Yield Point Min

Elongation Min

580N/mm2

420N/mm2

10%

EXCENTRICITY

Outer Diameter

Excentricity

< =125 mm

5 %

> 125 mm

7 %

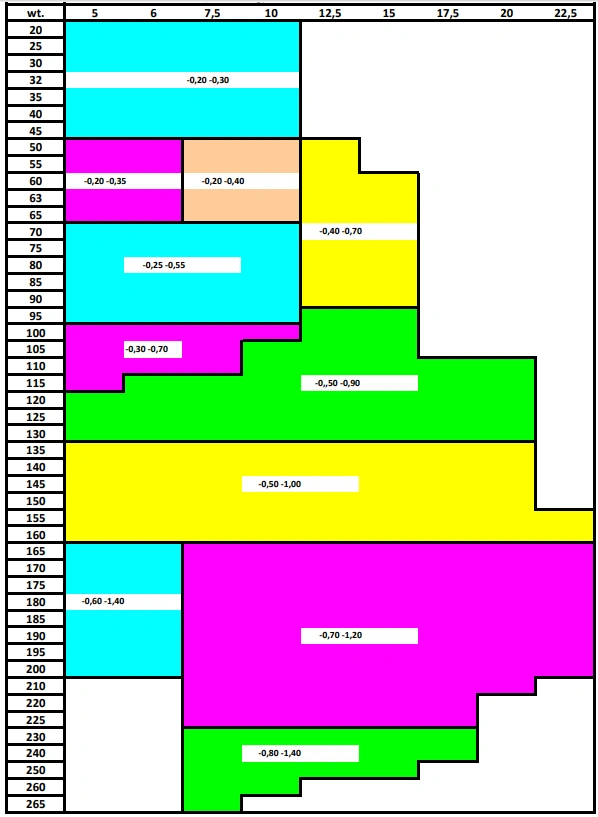

   I.D. stock allowance (for skiving)

ID stock allowance for ready to honed tube

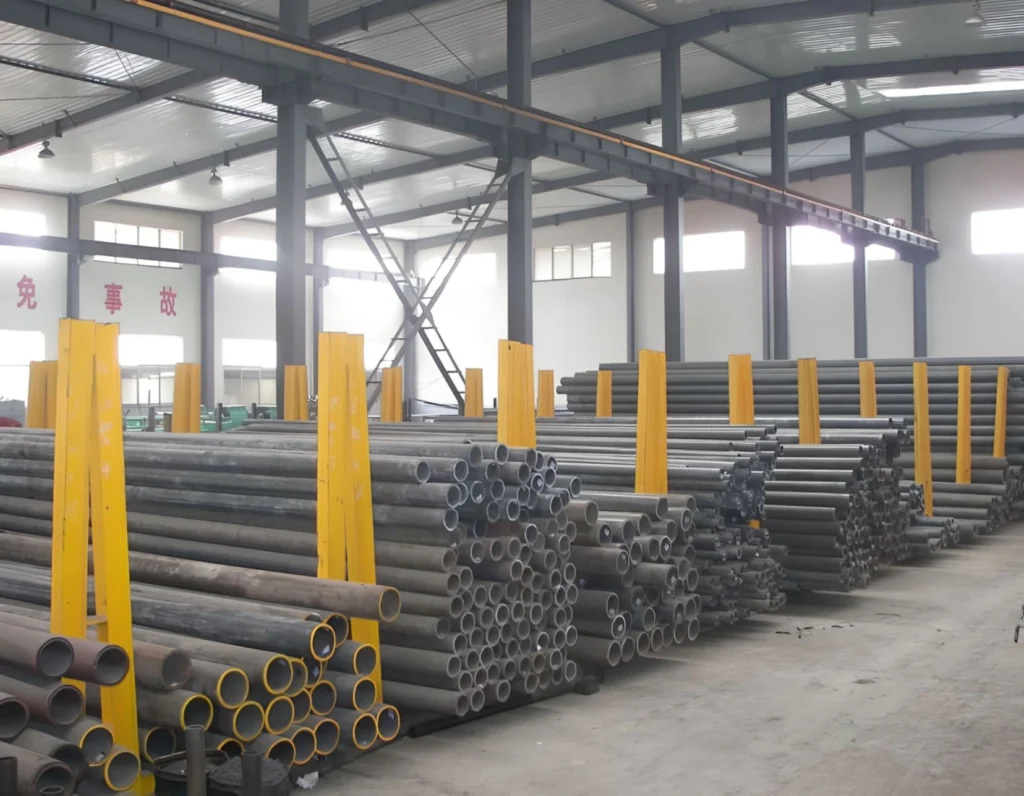

Production Workshop

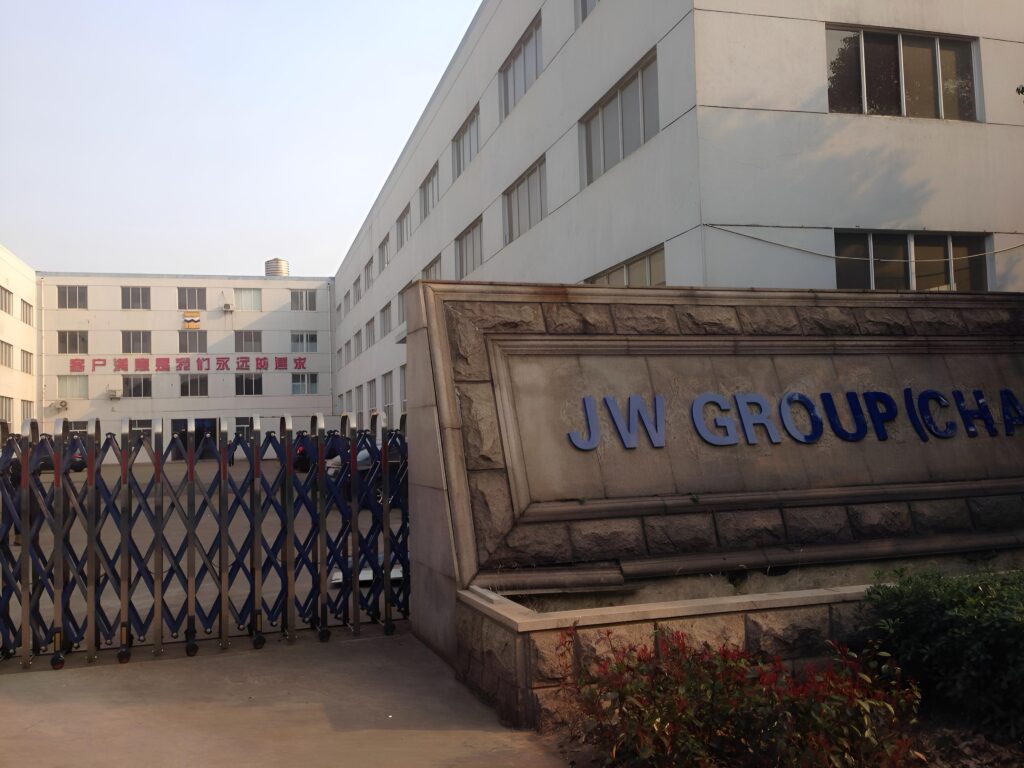

factory building

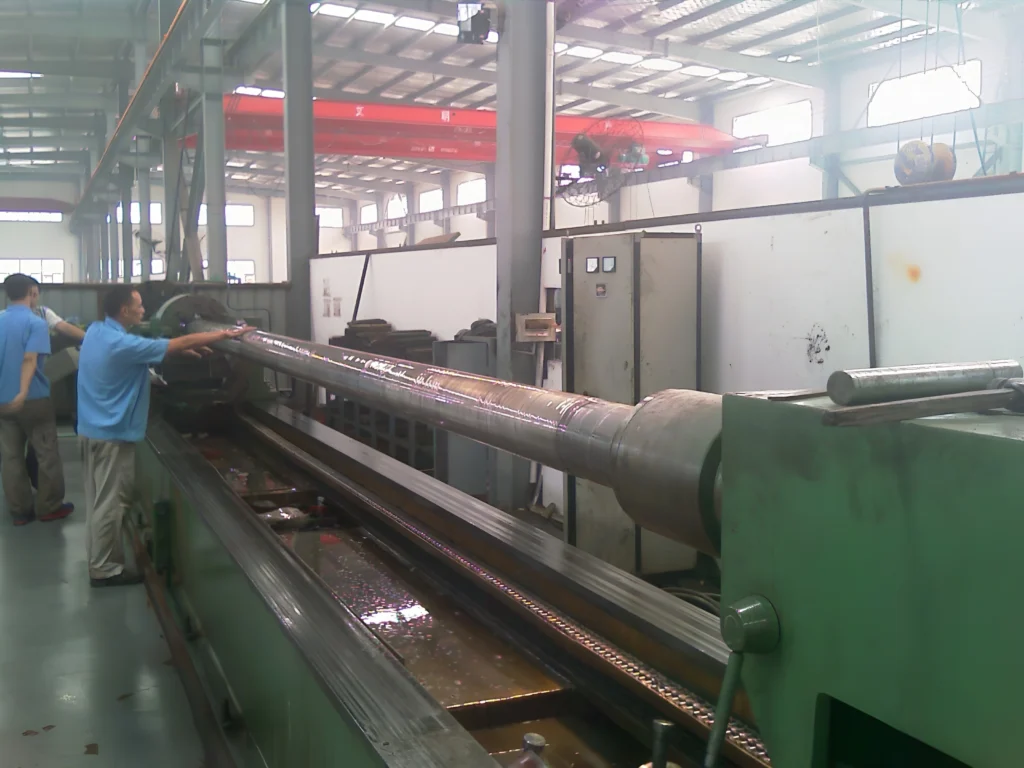

OD grinding machine
Boring and milling machines

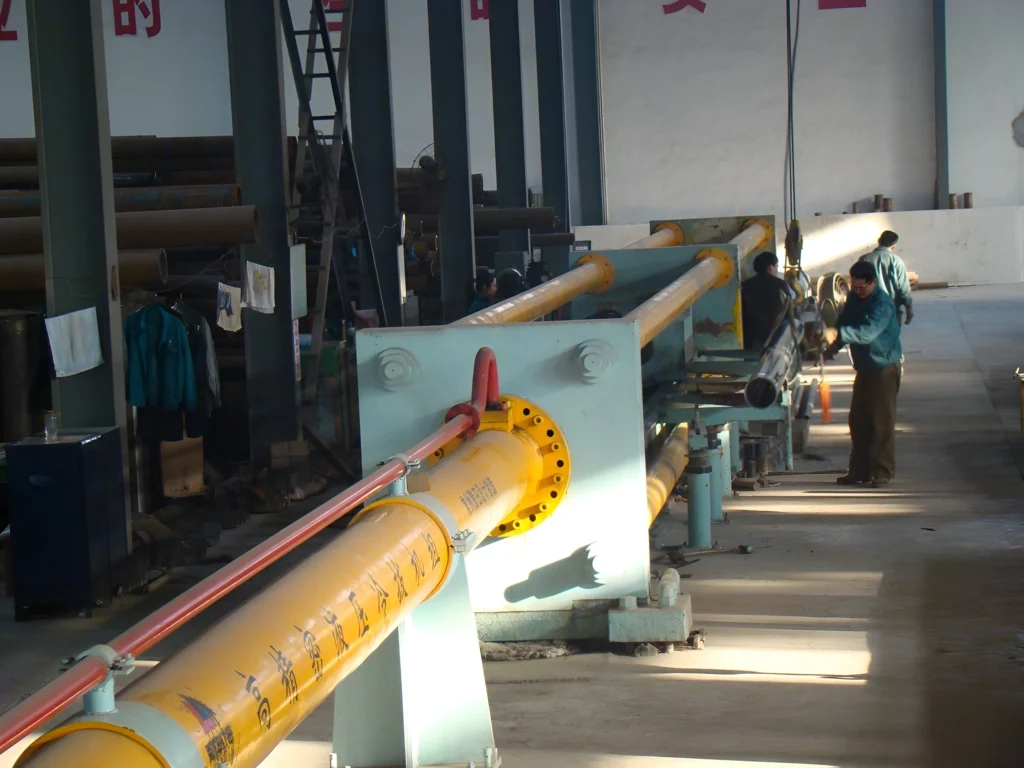

cold drawing machine

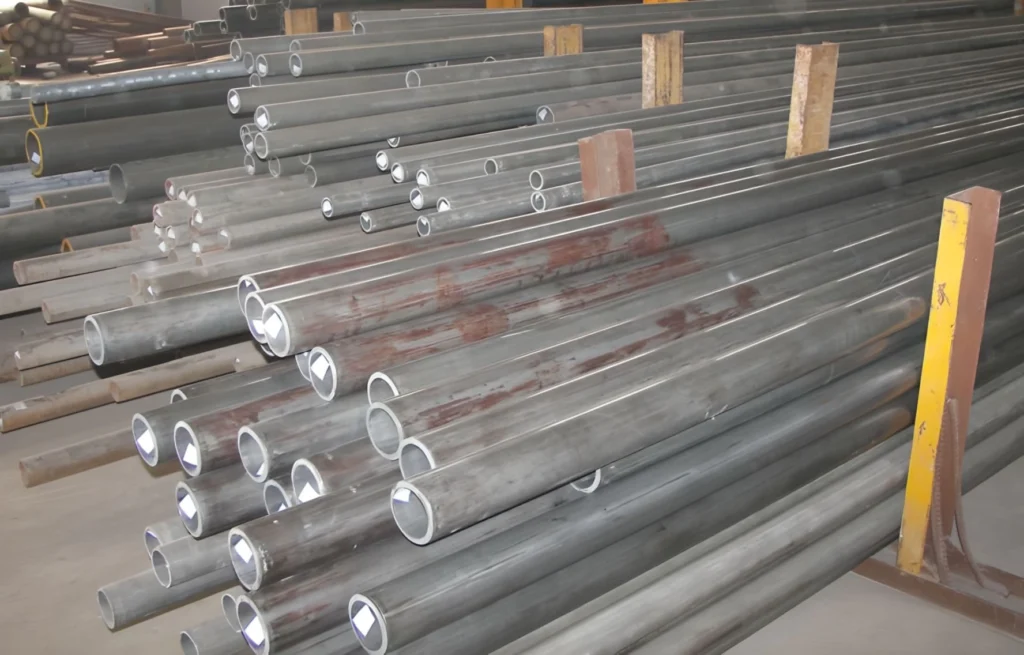

ready to honed tube
Skiving machine

Quality Control

Inspection measure of honed tube

Product Gallery

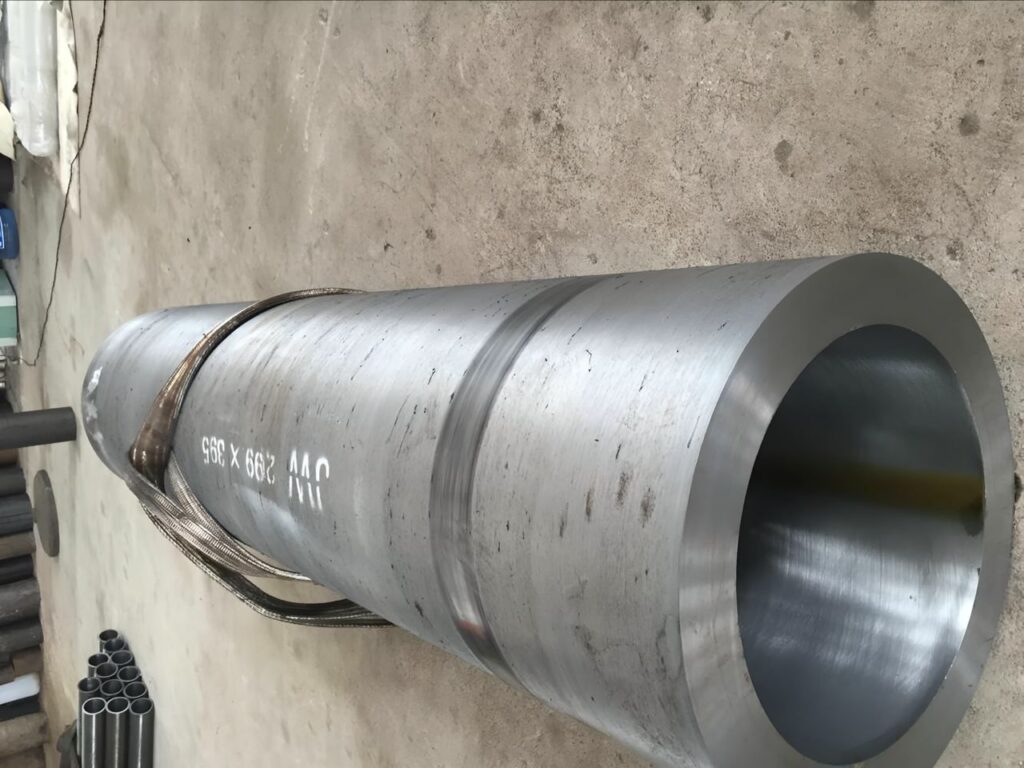

ready to honed tube
mother tube of hydraulic cylinder tube

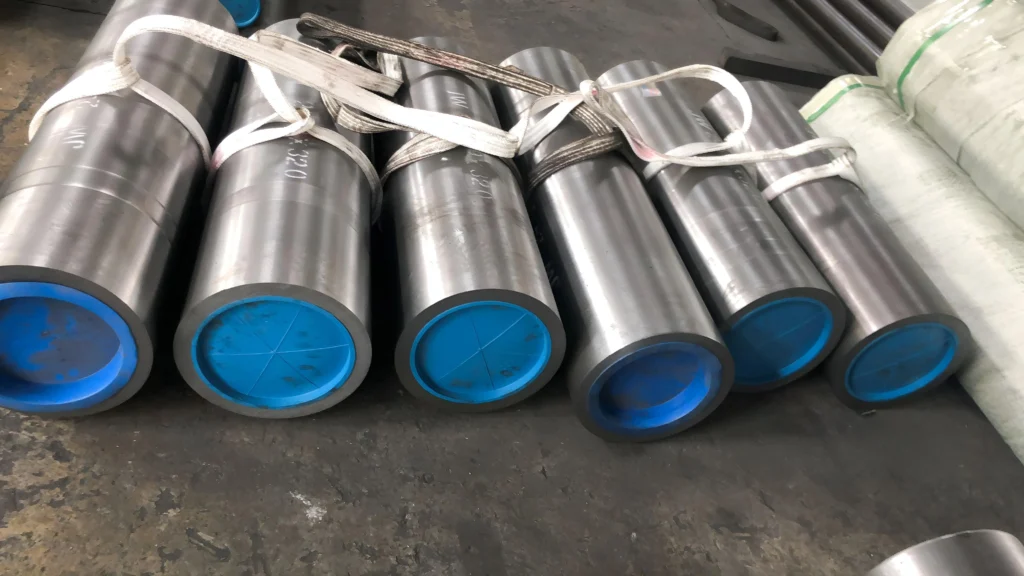

OD Lathered hydraulic cylinder tube
bored tube for hydarulic cylinder
ready to honed tube
package_of_honed_tube
